1.25mm pitch series

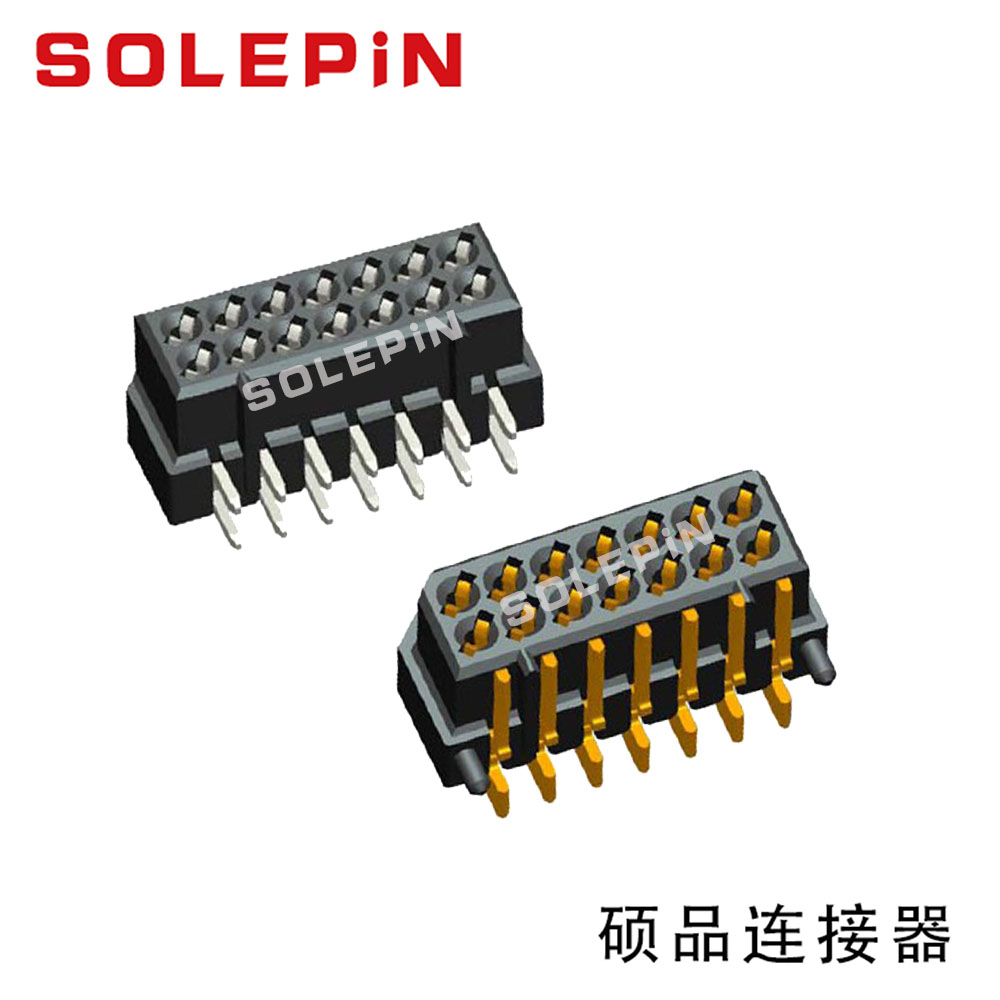

  • 1.25mm Pitch board-to-board connector compatible with the full series of TE 176140 4-100PIN

    1. 1.25mm pitch

    2. Connection method: horizontal /vertical /parallel

    3. Stacking height: 5, 7, 9, 12 mm

    4. Number of cores: 4-100pos

    5. The guiding design brings superior fit (guiding amount: ± 1.6mm)

    6. The unique terminal contact design enhances the mating performance

    7. Supports 4 Gbps PAM4 performance

    8. It can support 100 times of insertions and extrations

    9. Contact finish : Gold plating

    10. Plastic material: PA9T

    11. Production cycle: 10 to 15 days

    12. Packaging method: reel and tape


    More >

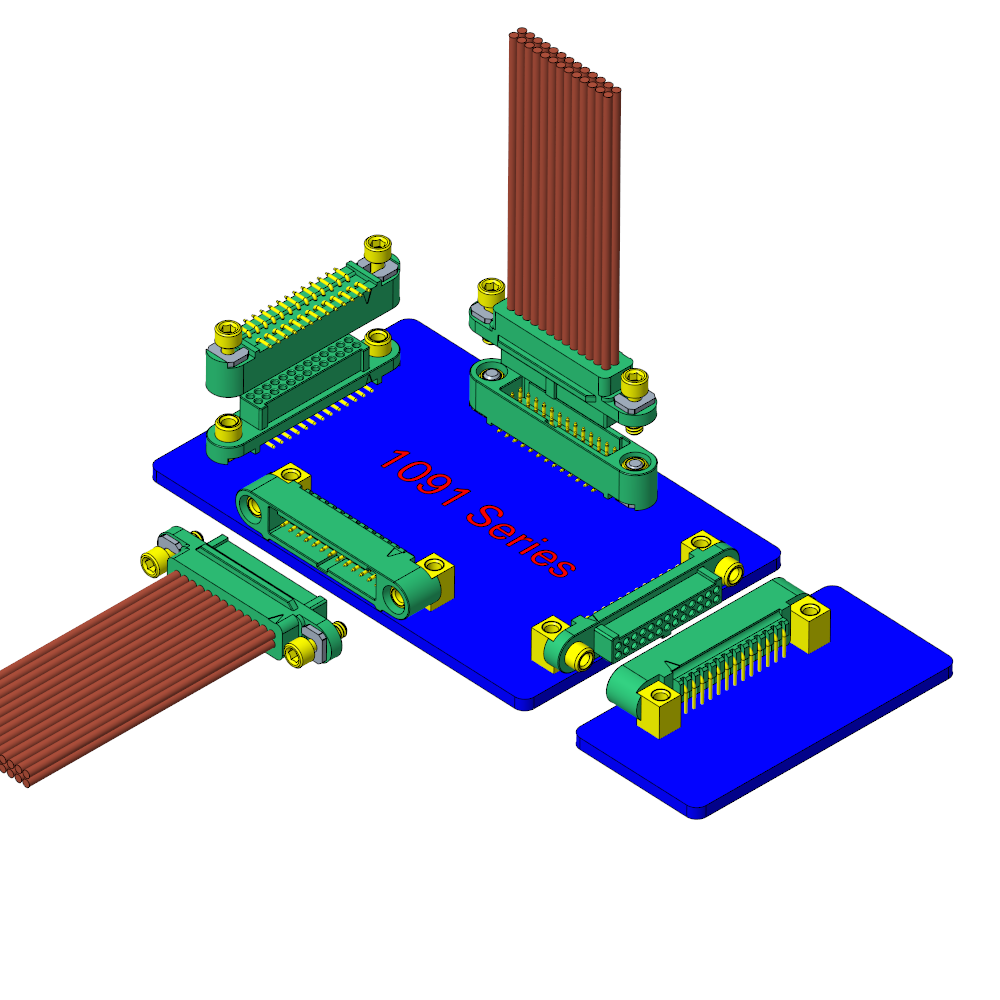

  • 1.25 pitch round pin board-to-board connector with screw and compatible with the entire HARWIN GN125

    1.1.25mm pitch

    2. Connection method: horizontal / vertical / parallel

    3. Stack height: 7.50mm

    4. Number of cores: 4-50pos

    5. The guiding design brings superior fit (guiding amount: ± 1.6mm)

    6. The unique terminal contact design enhances the mating performance

    7. Supports 4 Gbps PAM4 performance

    8. It can support 1000 insertions and extrations

    9. Contact finish: Gold plating 3u-15u

    10. Plastic material: PA9T

    11. Production cycle: 2-3 weeks

    12. Packaging method: Roll packaging


    More >
    • Total 1 page 2 records
