Products Products Introduction

Board to Board

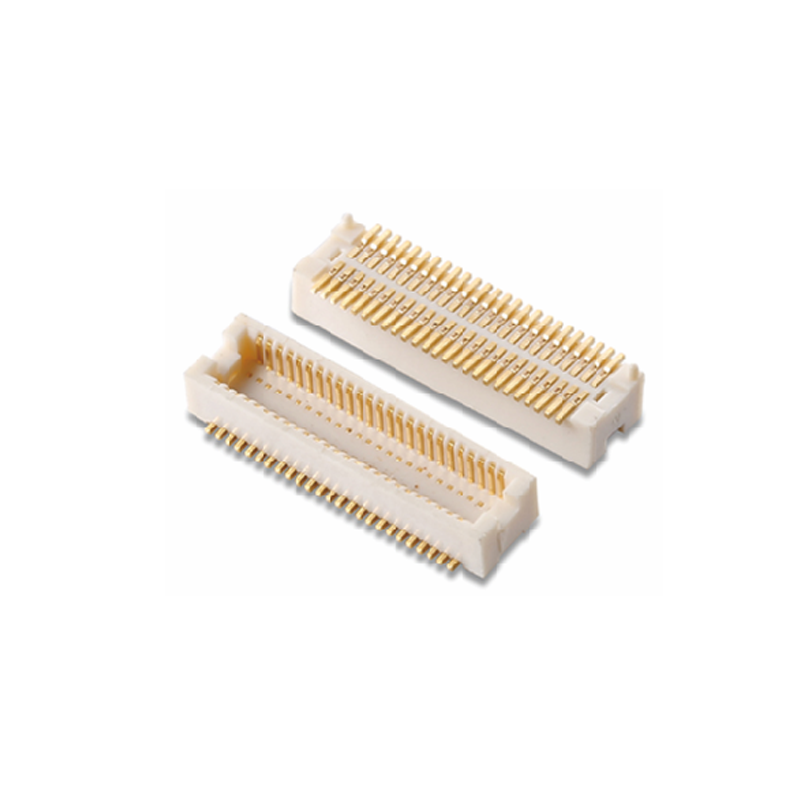

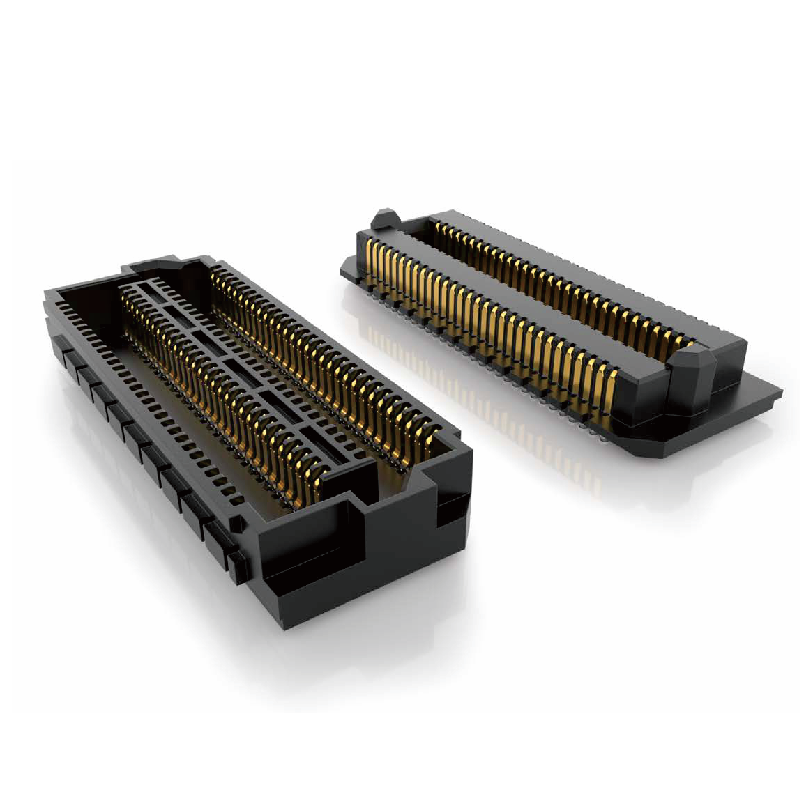

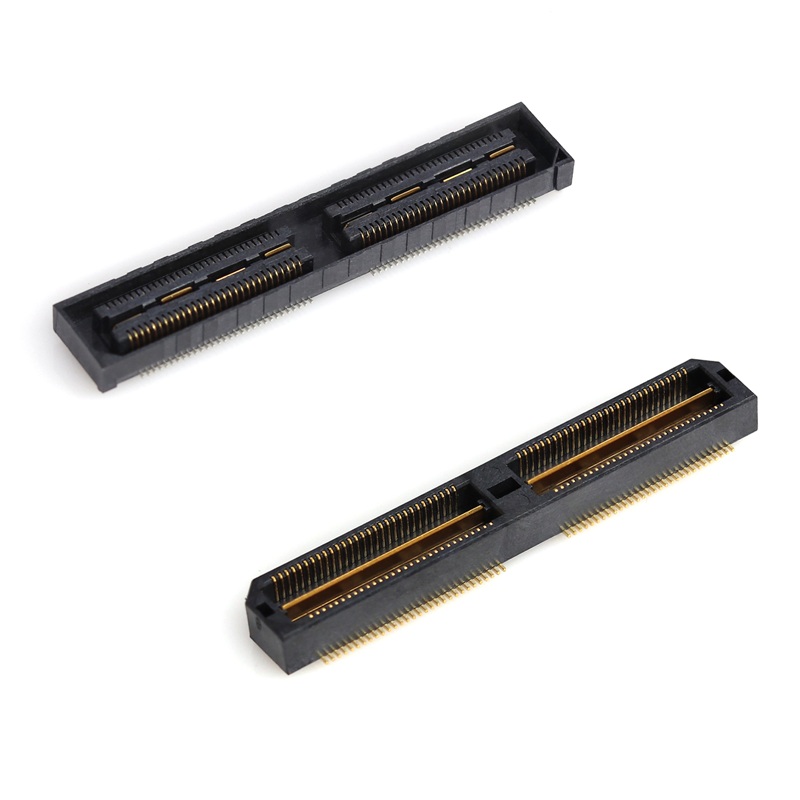

  • 66A1 0.5mmSIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 3/5mm

    4. Number of PIN: 10/20/30/40/50/60/80/120pos

    5. Guide design brings superior fit (guide amount: 1.2mm)

    6. Unique terminal contact design improves contact performance

    7. The functional design with grounding plate better ensures the reliability of the board

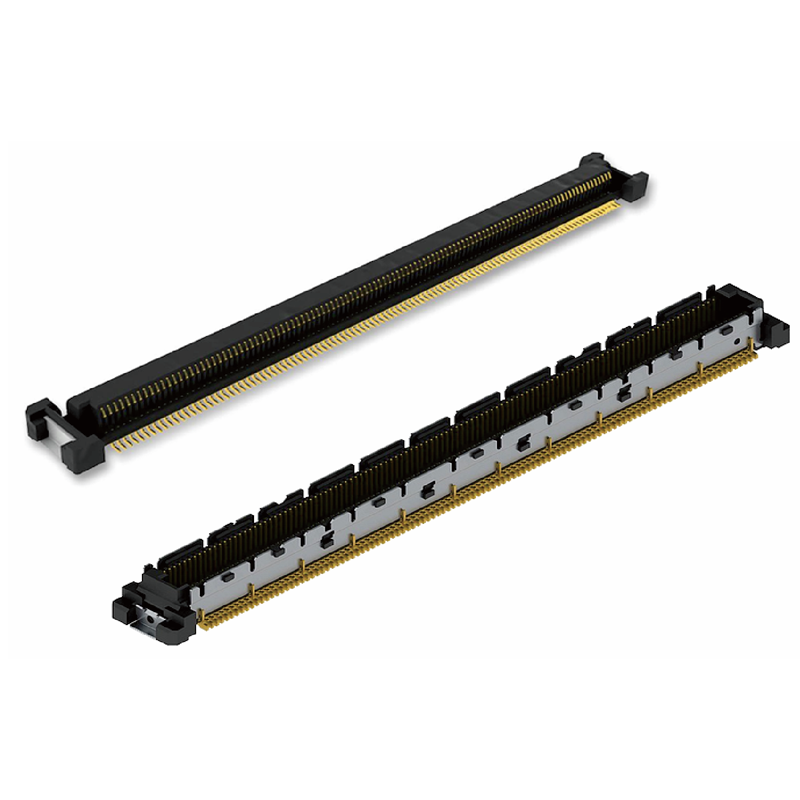

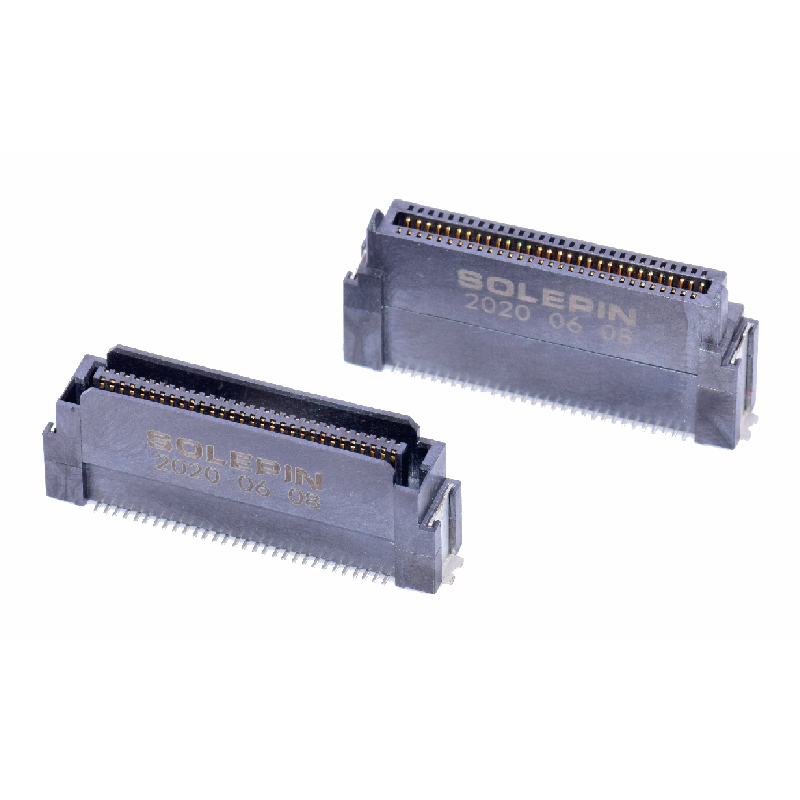

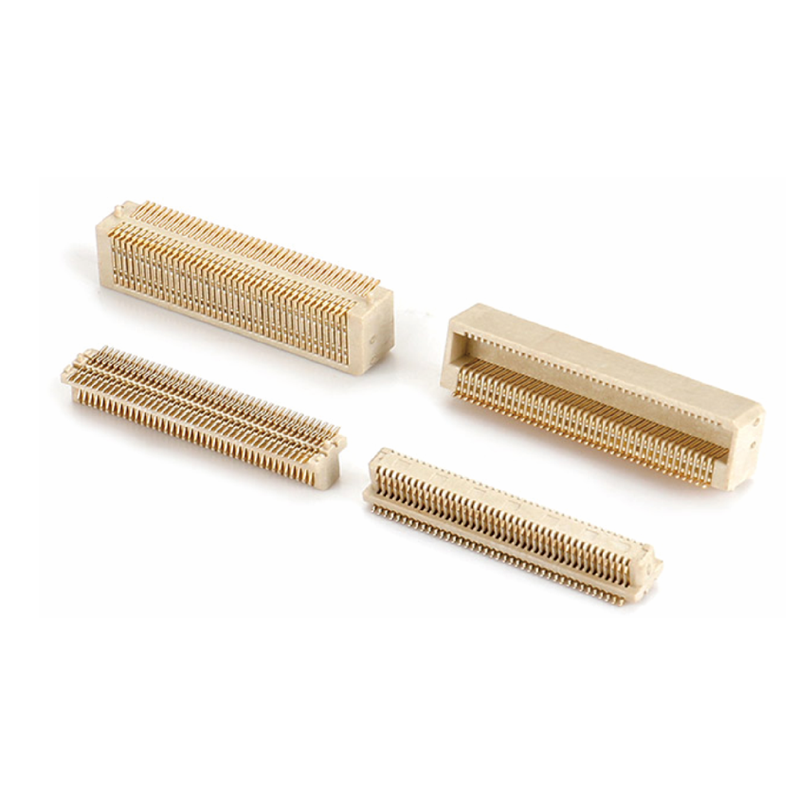

  • 66A2 0.5mm POWER+SIGNAL Floating board to board connector series

    1. Connection method: vertical, horizontal

    2. Stacking height: 8/10/12/14/15/17/19/20/23/25/30mm

    3. Number of PINs: 20/30/40/50/60/80/100/120pos

    4. Unique terminal contact design improves contact performance

    5. High-speed PCI-E4.0 16Gbps

    6. The functional design with grounding plate better ensures the reliability of the board.

    7. Power terminal 5A/PIN, signal terminal 0.5A/PIN

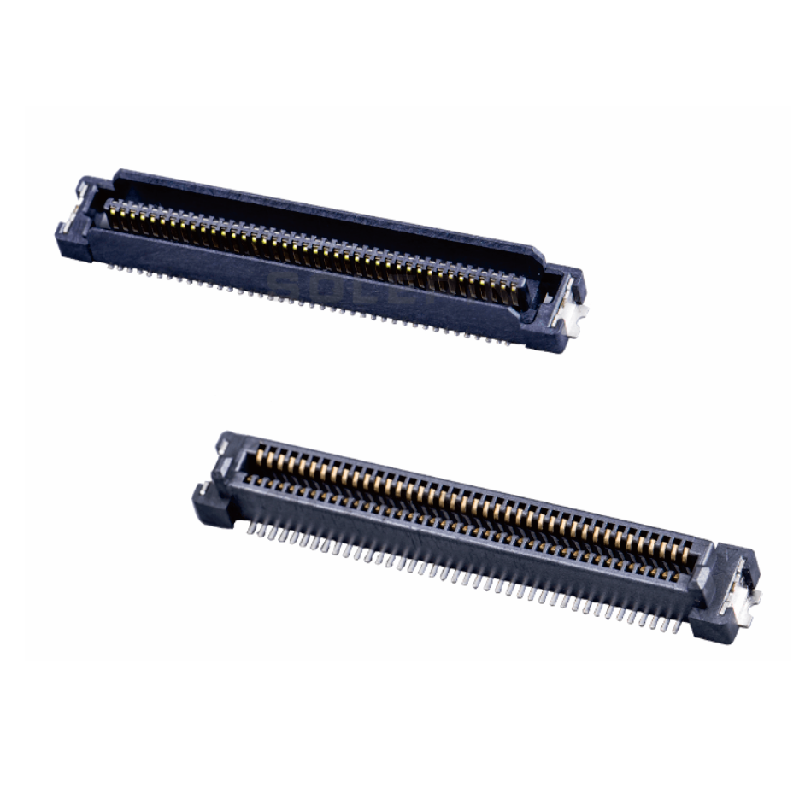

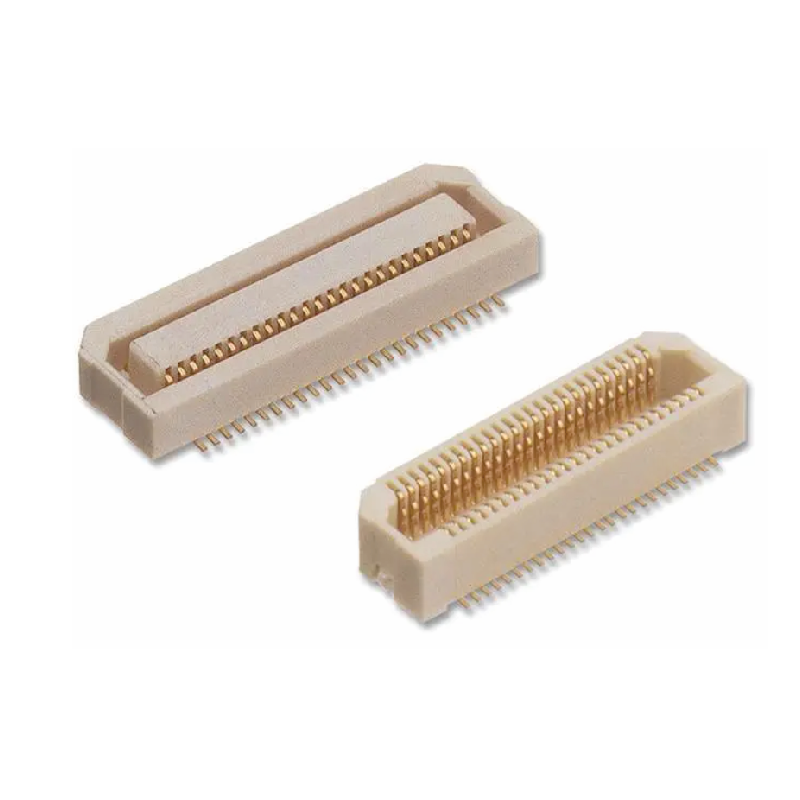

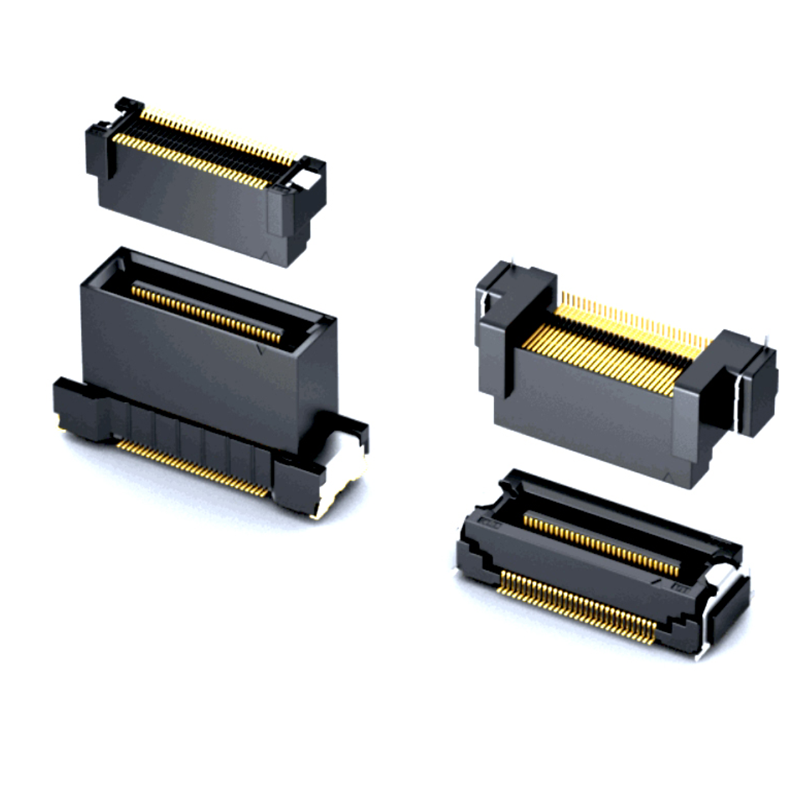

  • 66A3 0.5mm HIGH SPEED SIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical, horizontal

    3. Stacking height: 5/8/10mm

    4.PIN number:20/30/40/50/60/80/100/120pos

    5. Unique terminal contact design improves contact performance

    6. Signal terminal 0.5A/PIN

    7. High speed 16Gbps

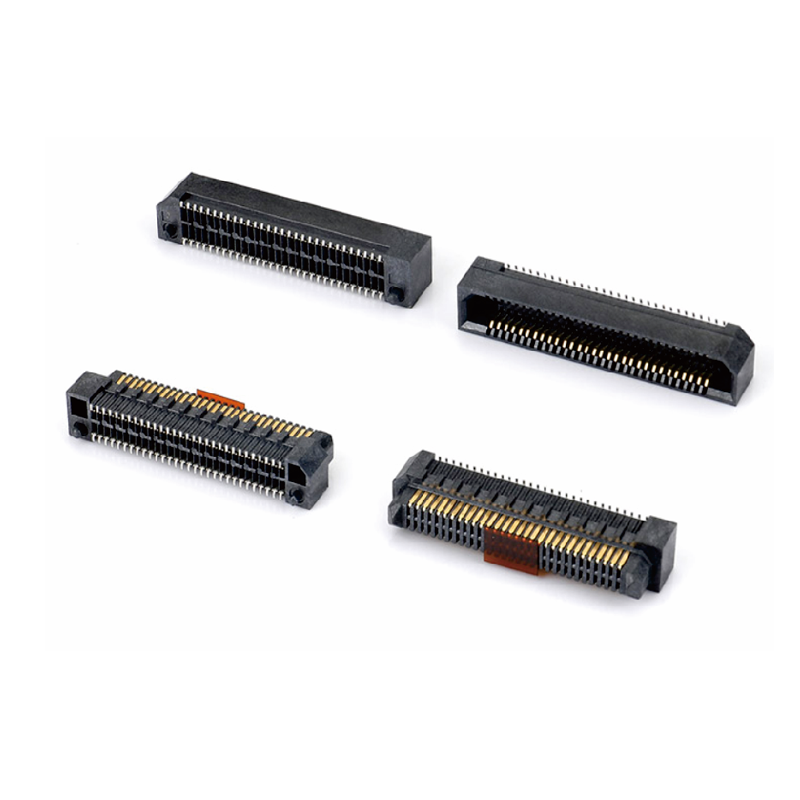

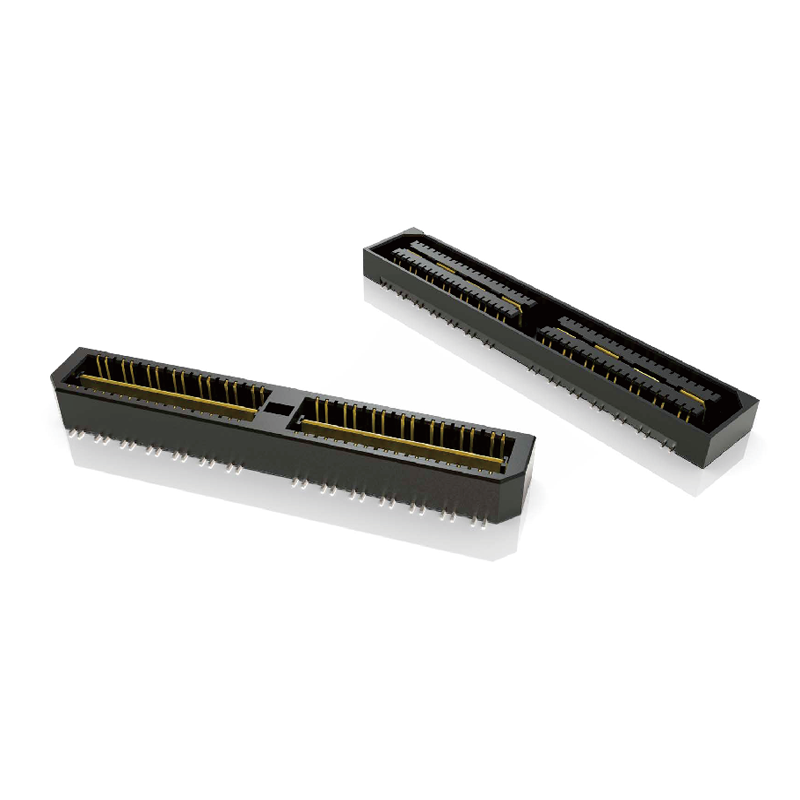

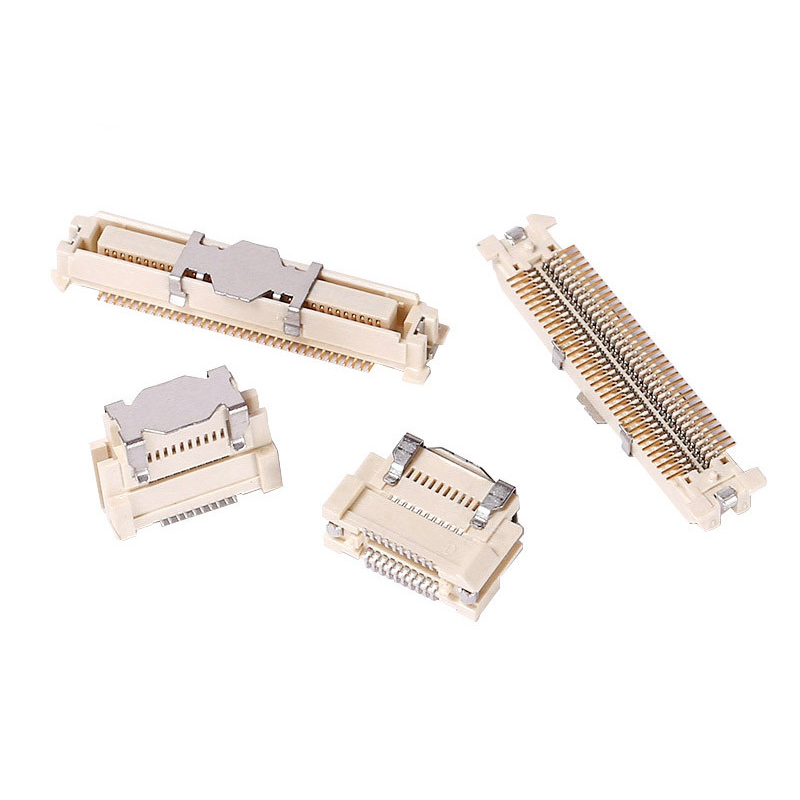

  • 66A4 0.5mm HIGH SPEED SIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5~25mm

    4. Number of cores: 60/120/180/240/300pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

    7. High-speed PCI-E4.0 16Gbps

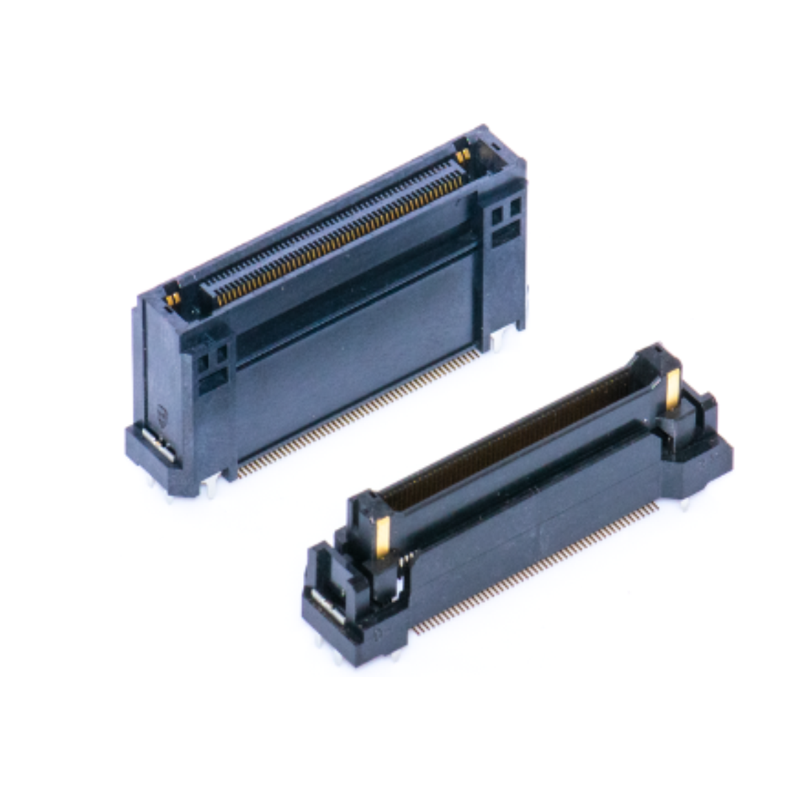

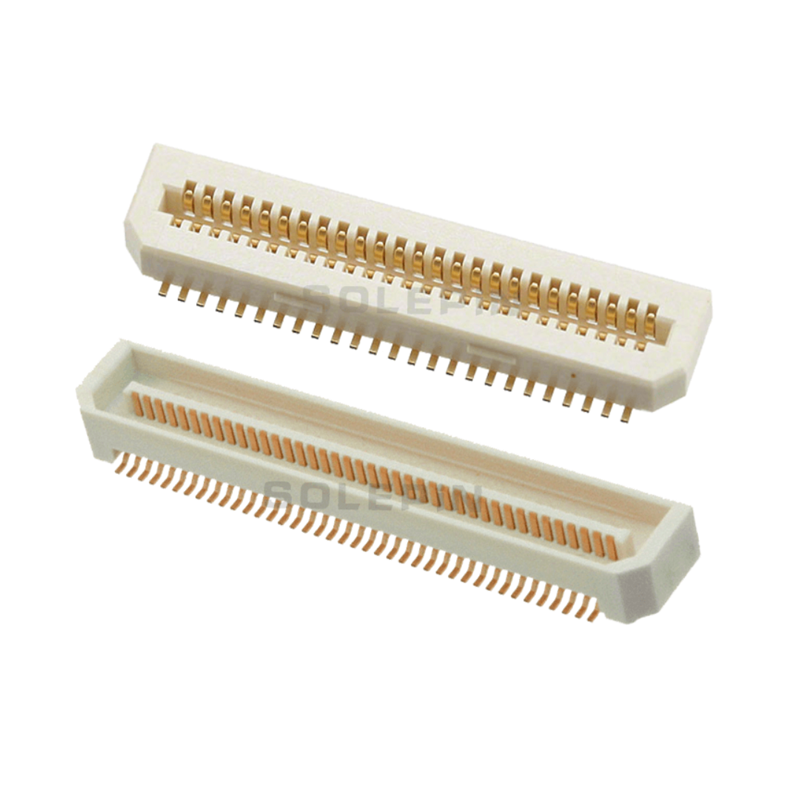

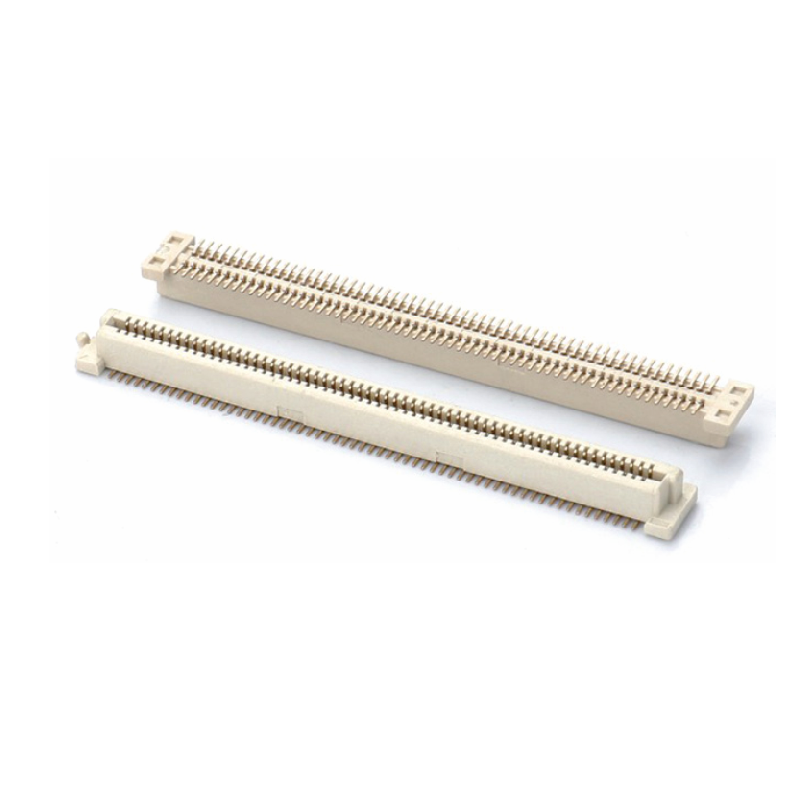

  • 66A5 0.5mm HIGH SPEED SIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5/8mm

    4. Number of cores: 40/80/120/160/220pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

    7. High-speed PCI-E4.0 16Gbps

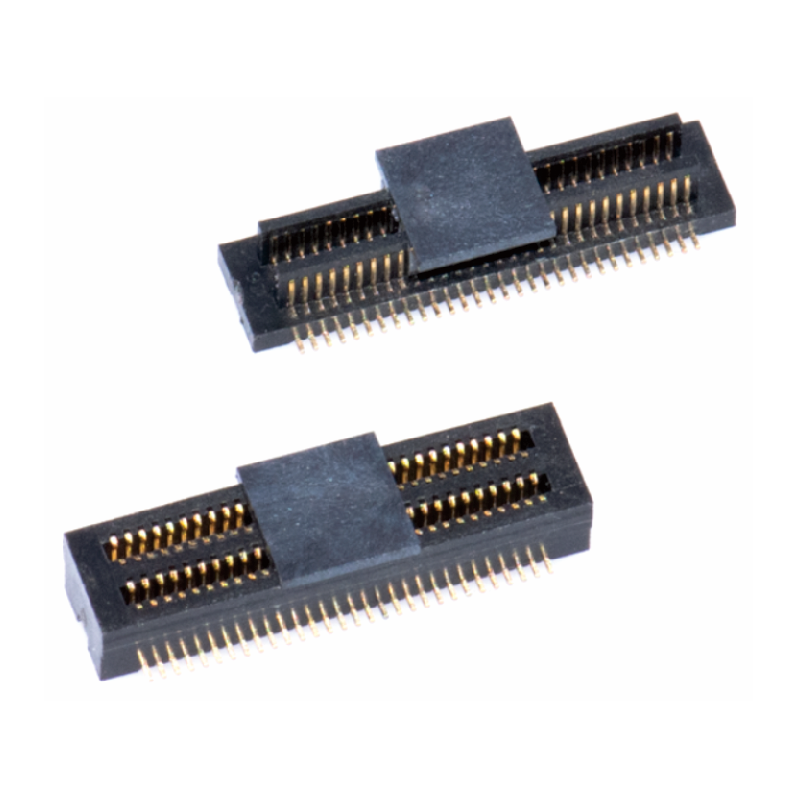

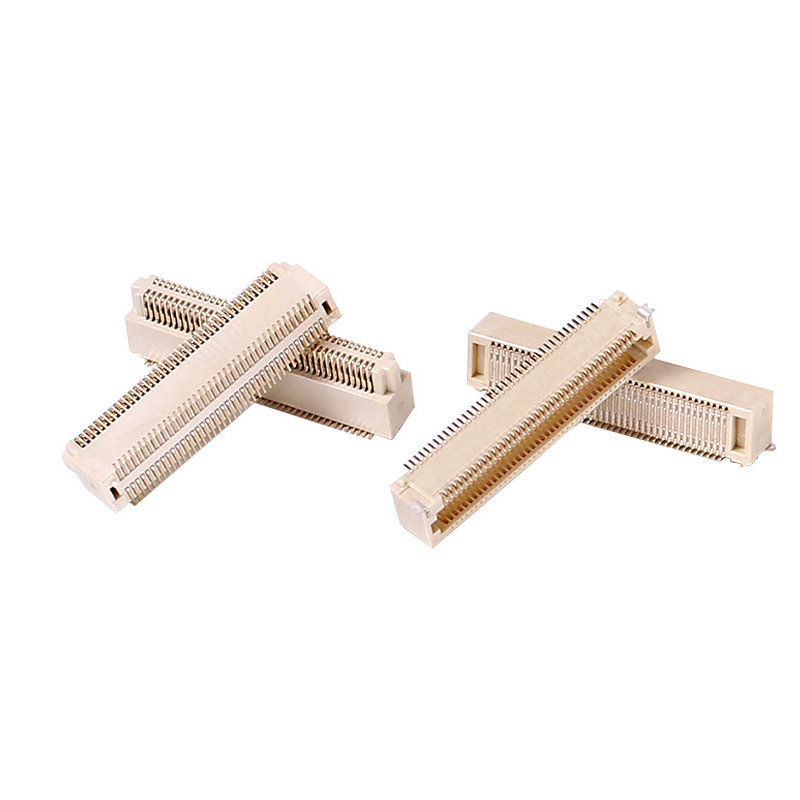

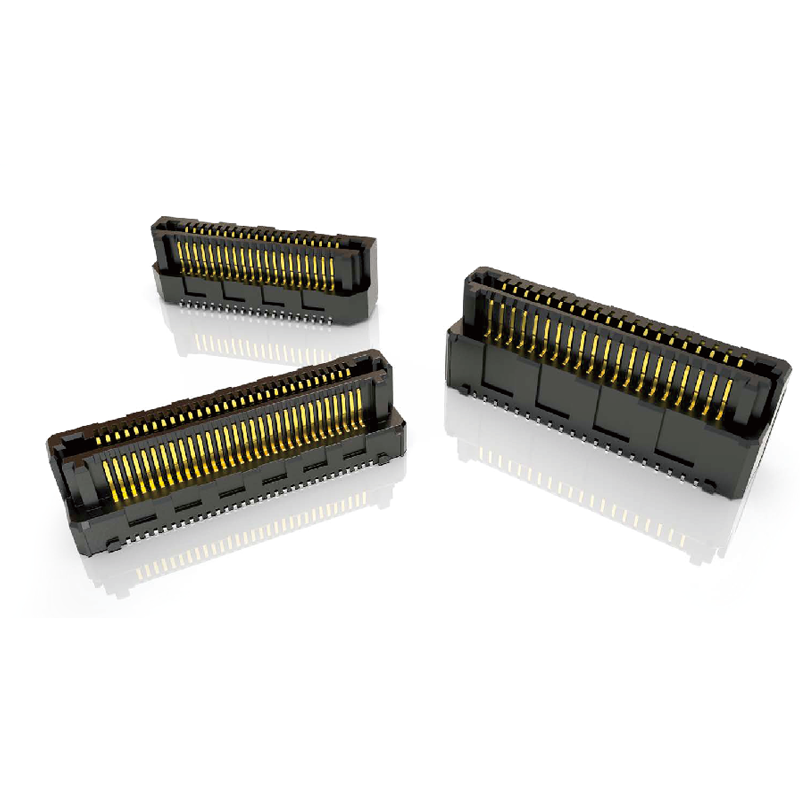

  • 66A6 0.5mm SIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 1.5/2.0/2.5/3.0mm

    4. Number of cores: 10~100pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

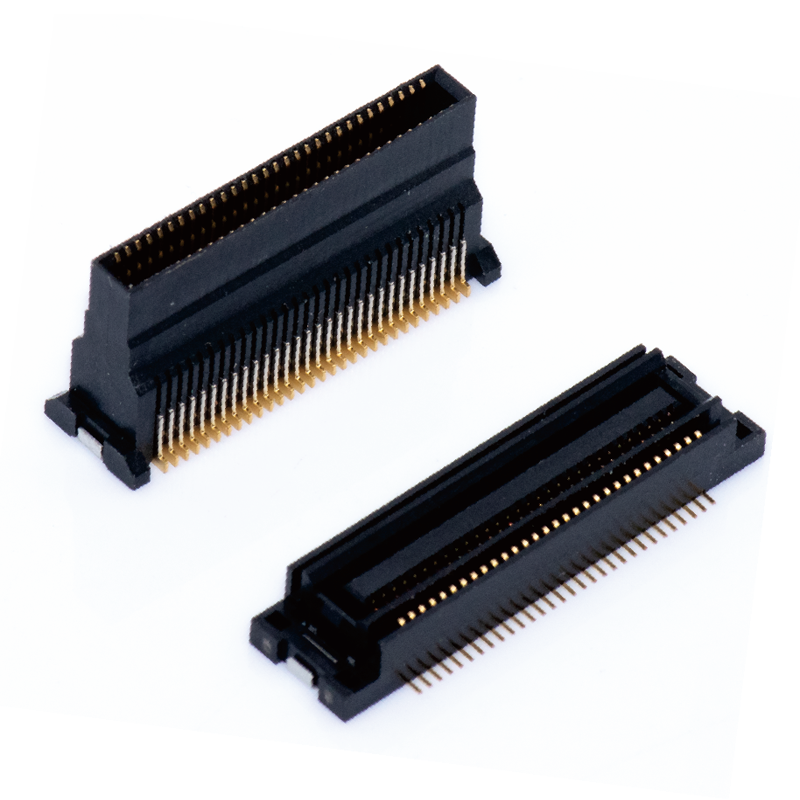

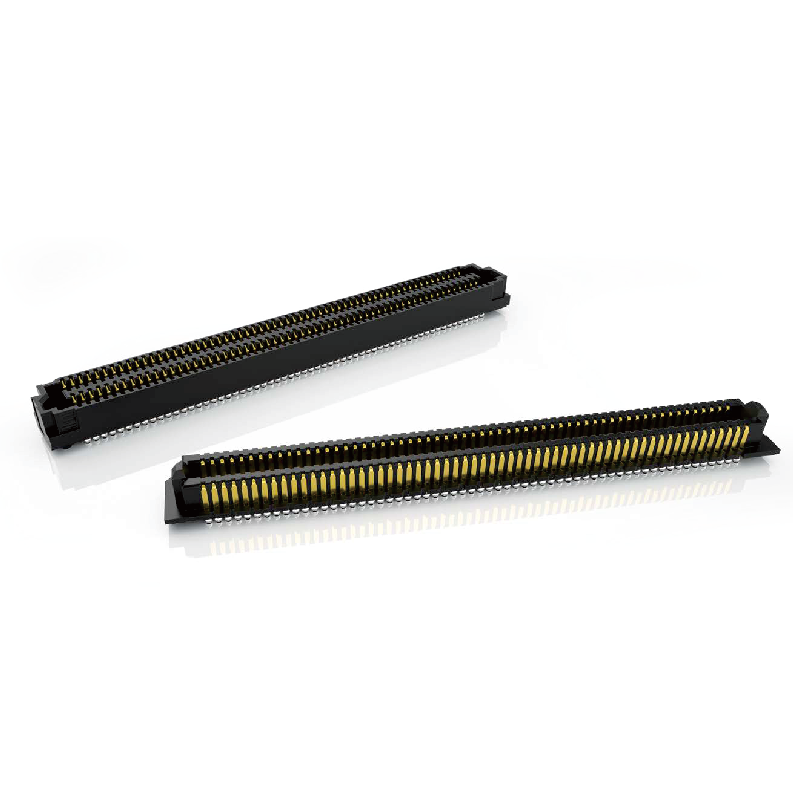

  • 66A7 0.5mm SIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5~15mm

    4. Number of cores: 10~120pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

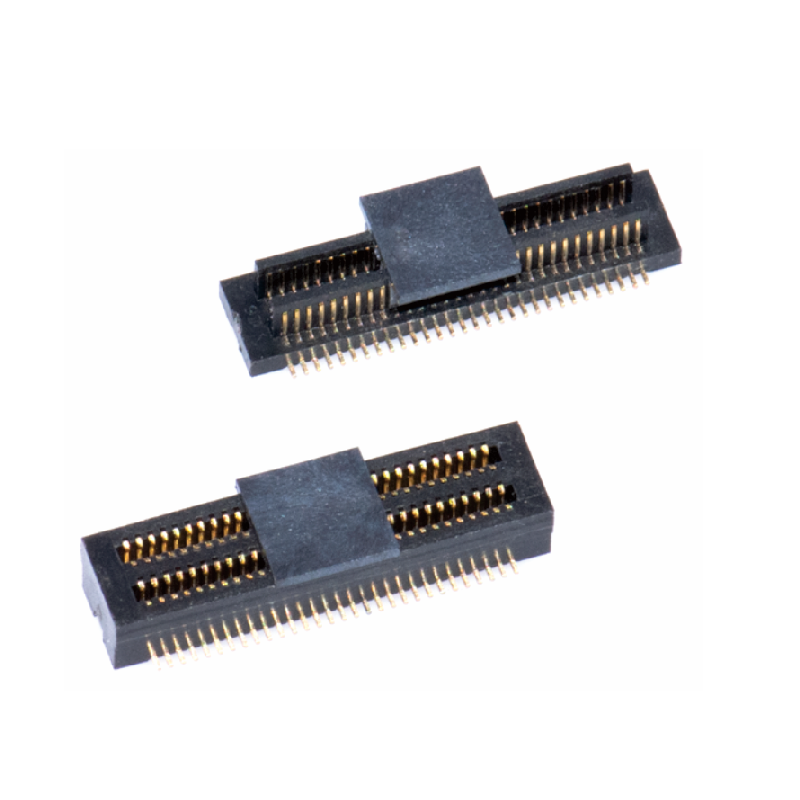

  • 66A8 0.5mmSIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 3~8mm

    4. Number of PIN: 06~80pos

    5. Guide design brings superior fit (guide amount: 1.2mm)

    6. Unique terminal contact design improves contact performance


  • 66A9 0.5mm SIGNAL board to board connector series

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5~10mm

    4. Number of cores: 10~120pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance



  • 66B1 0.635mm SIGNAL Floating board to board connector series

    Pin number selection: 20/30/40/50/60/80/100/120

    Spacing: 0.50mm

    Floating amount: X Y ± 0.50mm Z+0.50mm

    SNGNAL Pin: 0.5A/Pin

    Combination height (mm): 8/10/12/14/15/

  • 66B2 0.635mm High-speed board to board connector ADF6/ADM6

    1.0.5mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5~8mm

    4. Number of cores: 40/80/120/160/200/240/280/320/360/400pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

    7. High-speed PCI-E5.0 56Gbps

  • 66B4 0.635mm board to board connector

    Flexible open-pin-field and cost optimized, extreme performance solution.

    Low-profile 5 mm stack height and up to 10 mm.

    0.635 mm pitch.

    Four row design with up to 400 total pins; roadmap to 1,000+ pins.

    Data rate compatible with PCle®  5.0 and 100 GbE.

    Right-angle connector and cable assembly in development.


  • 66B6 0.635mm High-speed board to board connector APF6/APM6

    Flexible open-pin-field and cost optimized, extreme performance solution.

    Low-profile 5 mm stack height and up to 10 mm.

    0.635 mm pitch.

    Four row design with up to 400 total pins; roadmap to 1,000+ pins.

    Data rate compatible with PCle®  5.0 and 100 GbE.

    Right-angle connector and cable assembly in development.


  • 66C1 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: Side insertion

    3. Stacking height: 5~8mm

    4. Number of cores: 10~80pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance


  • 66C2 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5/6/8/10/11/15/16/20/21mm

    4. Number of cores: 20/40/60/80/100/120/160pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance


  • 66C3 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5/6/8/10/11/15/mm

    4. Number of cores: 20/40/60/80/100/120/160/200pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance


  • 66C4 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 7/9/12/16mm

    4. Number of cores: 10/20/40/60/80/100/120/140/150pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

    7.High speed 16Gbps


  • 66C5 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 7/9/12/16mm

    4. Number of cores: 10/20/40/60/80/100/120/140/150pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance



  • 66C6 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5mm

    4. Number of cores: 40/80/120/160/200pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

    7.High speed 16Gbps



  • 66C7 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 3~8mm

    4. Number of cores: 6~80pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance




  • 66C8 0.8mm SIGNAL Floating board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 6/8/9.75/11.75/12.75/14.75mm

    4. Number of cores: 30/40/60/80pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

    7.X Y Z =0.50mm


  • 66C9 0.8mmSIGNAL board to board connector series

    1.0.80mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 5mm

    4. Number of cores: 10/20/40/60/80/100/120/pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance



  • 66D2 1.00mmSIGNAL board to board connector series

    1.1.00mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 8~15mm

    4. Number of cores: 10~100pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

  • 66D6 1.00mm SIGNAL Floating board to board connector series

    1.1.00mm pitch with anti-fool and anti-vibration

    2. Connection method: vertical

    3. Stacking height: 15/18/20/22/25mm

    4. Number of cores: 20/40/60/80/pos

    5. Guide design brings superior fit (guide amount: 1.6mm)

    6. Unique terminal contact design improves contact performance

    7  X Y Z =0.70MM
