Wire to Board Connector

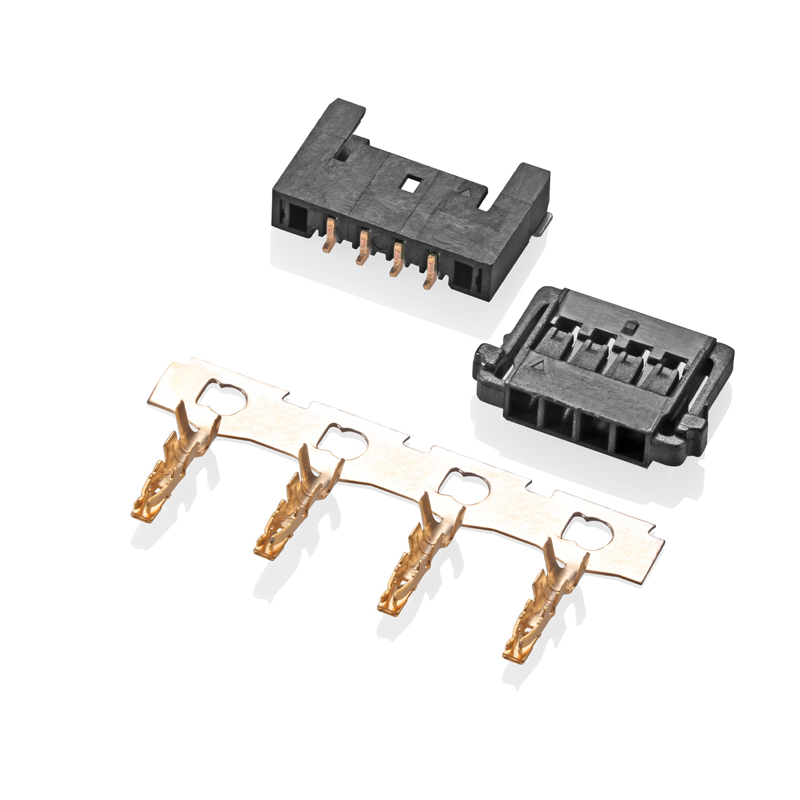

WF0060 0.60mm Pitch wire-to-board connector series
Current Rating:0.2A AC/DC
Voltage Rating:30V AC/DC
Contact Resistance:≤30mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:200V AC/Minute
Wire Range:36AWG
Temperature Range:-25°C~+85°C

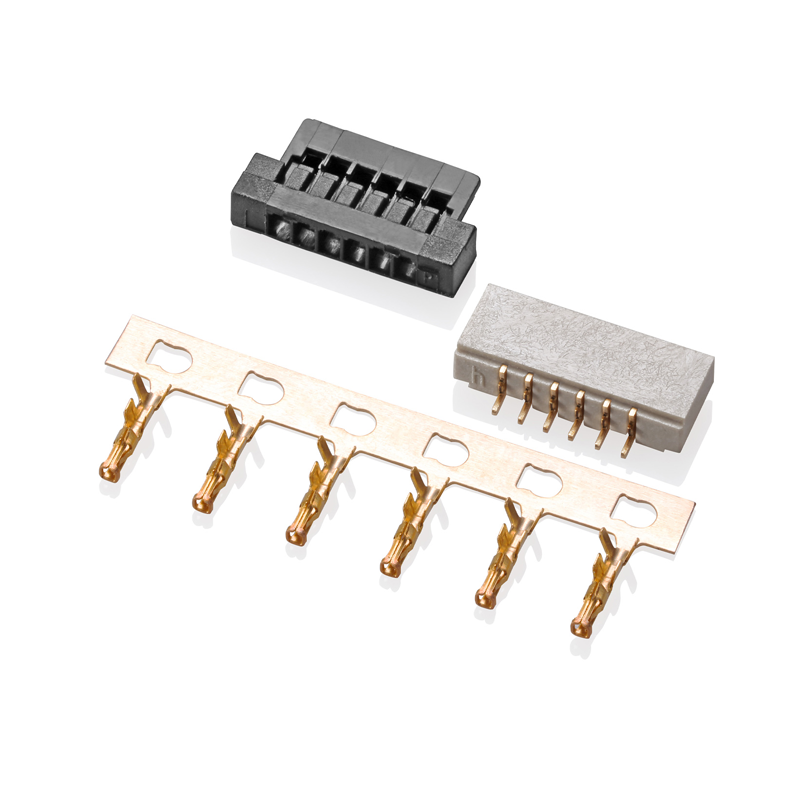

WF1001 1.00mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:28~32AWG
Temperature Range:-25°C~+85°C

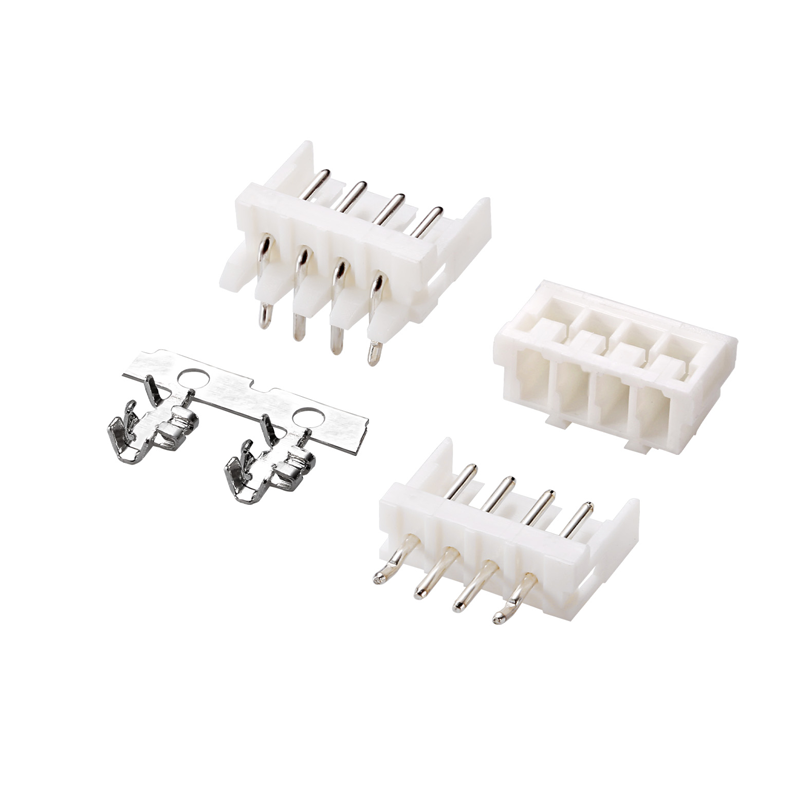

WF1002 1.00mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:28~32AWG
Temperature Range:-25°C~+85°C

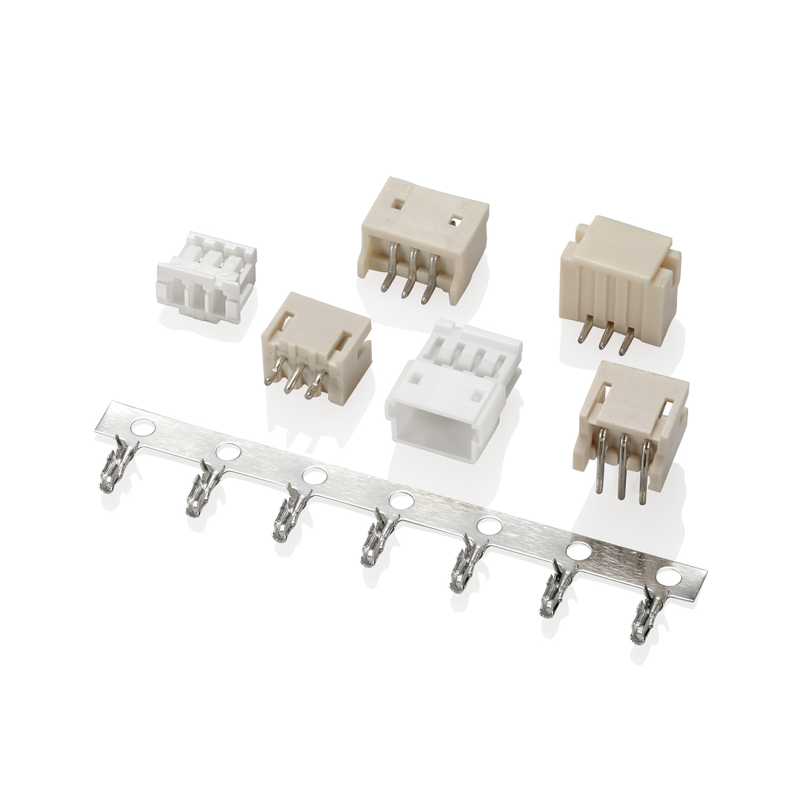

WF1003 1.00mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:28~32AWG
Temperature Range:-25°C~+85°C

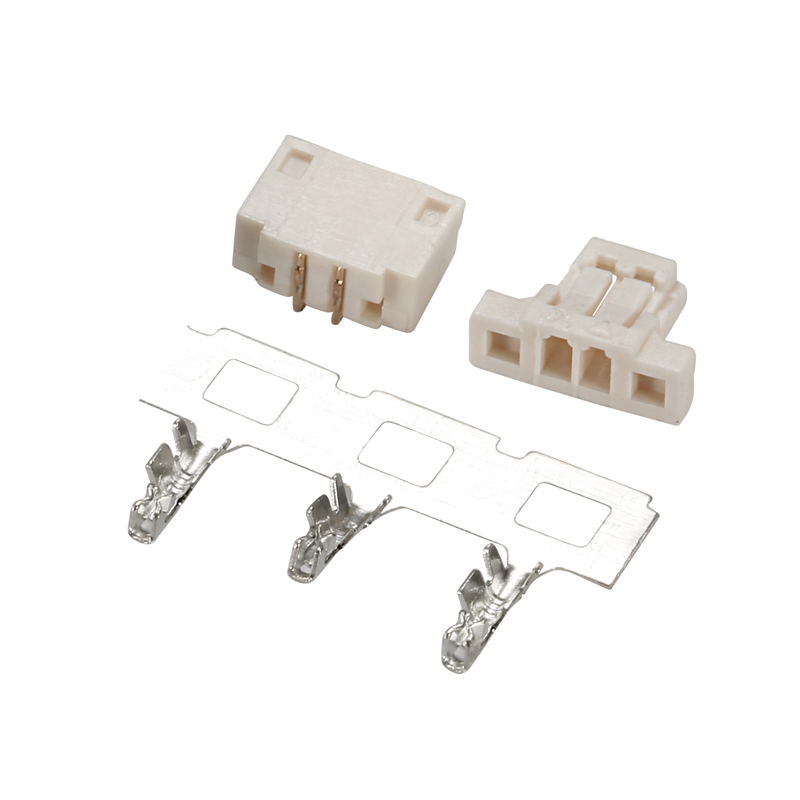

WF1004 1.00mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:28~32AWG
Temperature Range:-25°C~+85°C

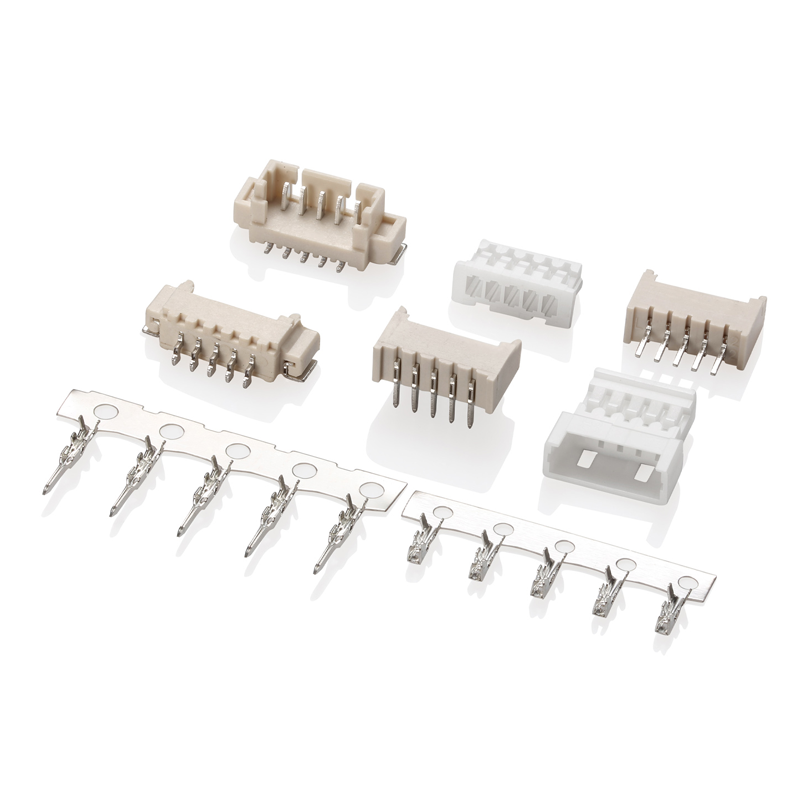

WF1005 1.00mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:28~32AWG
Temperature Range:-25°C~+85°C

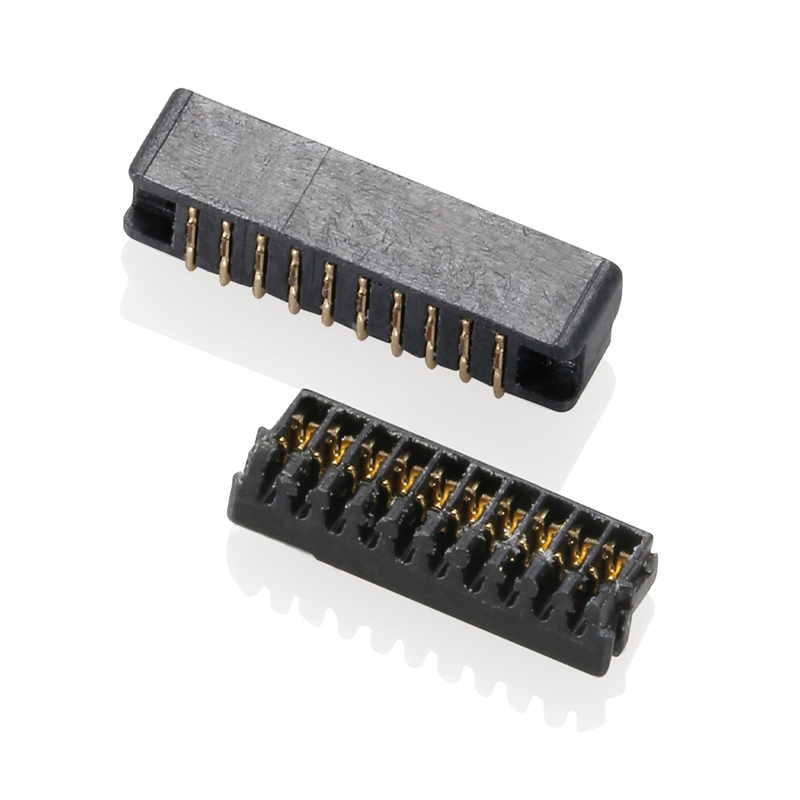

WF1250 1.25mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:26~30AWG
Temperature Range:-40°C~+105°C

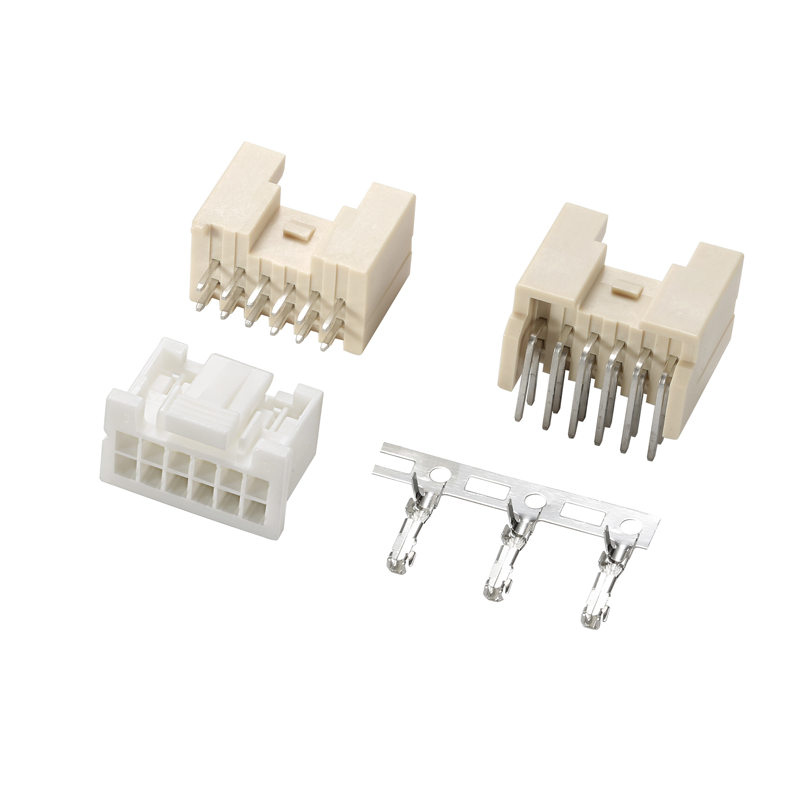

WF1251 1.25mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:26~30AWG
Temperature Range:-40°C~+105°C
WF1252 1.25mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:26~30AWG
Temperature Range:-40°C~+105°C
WF1253 1.25mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:26~30AWG
Temperature Range:-40°C~+105°C
WF1254 1.25mm Pitch wire-to-board connector series
Current Rating:1A AC/DC
Voltage Rating:50V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥100mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:26~30AWG
Temperature Range:-40°C~+105°C
WF1500 1.50mm Pitch wire-to-board connector series
Current Rating:2A AC/DC
Voltage Rating:125V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥500mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:24~28AWG
Temperature Range:-40°C~+105°C
WF1501 1.50mm Pitch wire-to-board connector series
Current Rating:2A AC/DC
Voltage Rating:125V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥500mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:24~28AWG
Temperature Range:-40°C~+105°C
WF1502 1.50mm Pitch wire-to-board connector series
Current Rating:2A AC/DC
Voltage Rating:125V AC/DC
Contact Resistance:≤20mΩ
nsulation Resistance:≥500mΩ
Withstanding Voltage:500V AC/Minute
Wire Range:24~28AWG
Temperature Range:-40°C~+105°C
WF2000 2.00mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤10mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~28AWG
Temperature Range:-40°C~+125°C
WF2001 2.00mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤10mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~28AWG
Temperature Range:-40°C~+125°C
WF2002 2.00mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤10mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~28AWG
Temperature Range:-40°C~+125°C
