2.54mm Pitch series

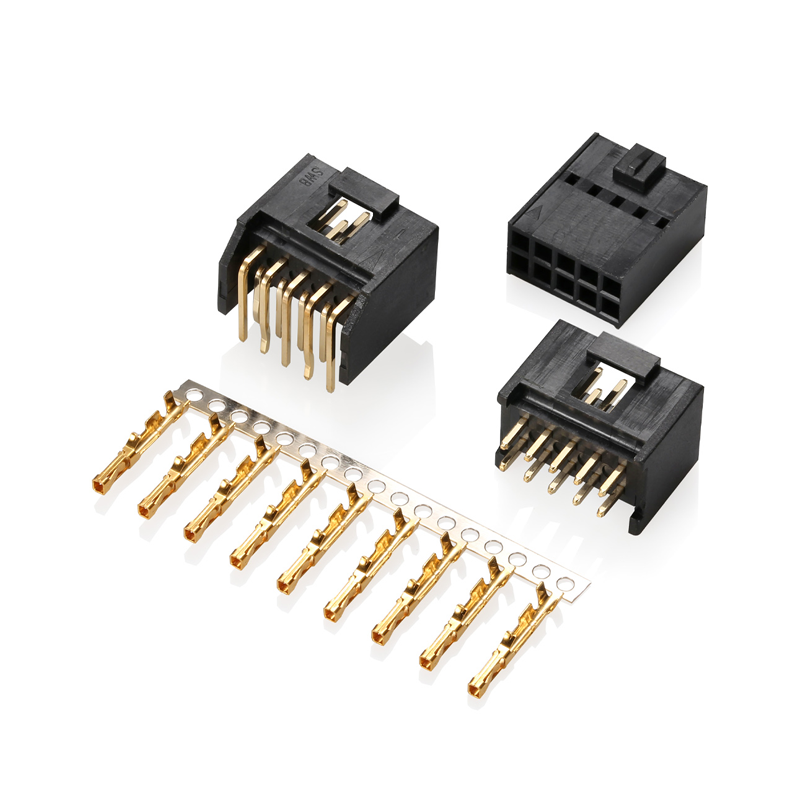

WF2501 2.54mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤2mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~26AWG
Temperature Range:-40°C~+125°C

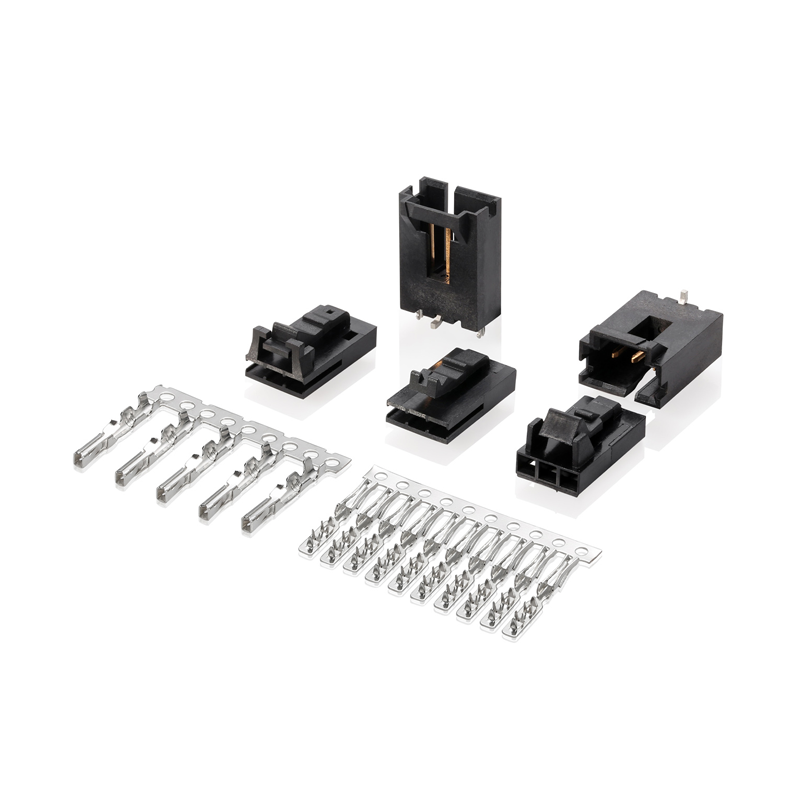

WF2502 2.54mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤2mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~26AWG
Temperature Range:-40°C~+125°C

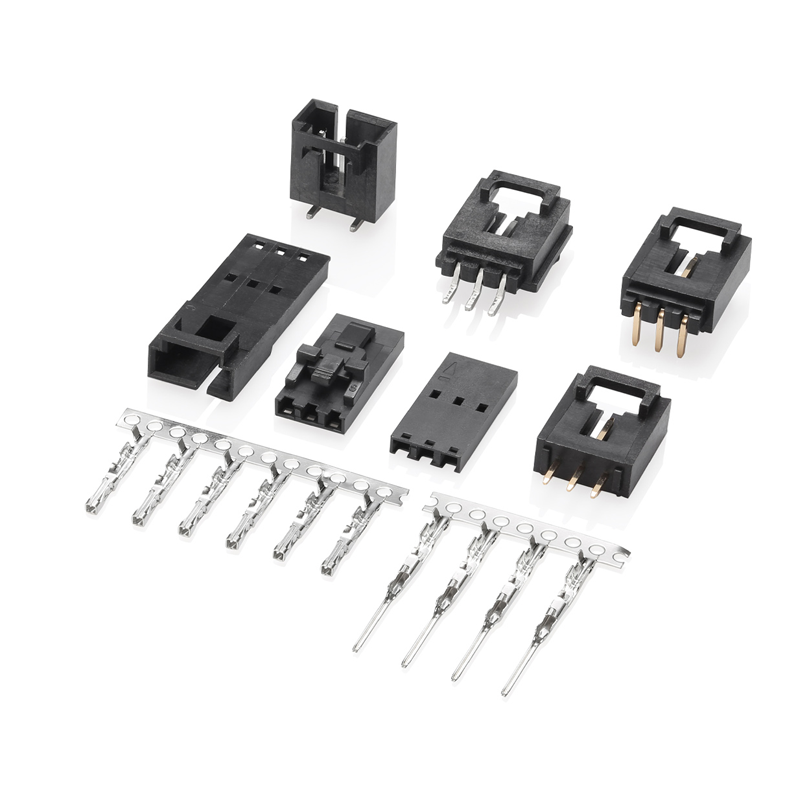

WF2503 2.54mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤2mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~26AWG
Temperature Range:-40°C~+125°C

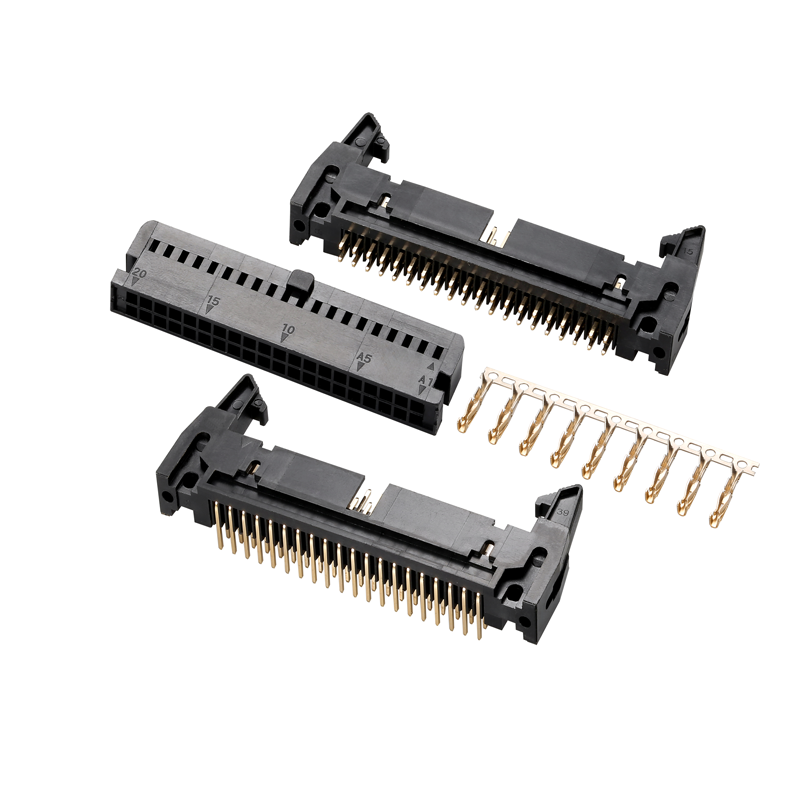

WF2504 2.54mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤2mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~26AWG
Temperature Range:-40°C~+125°C

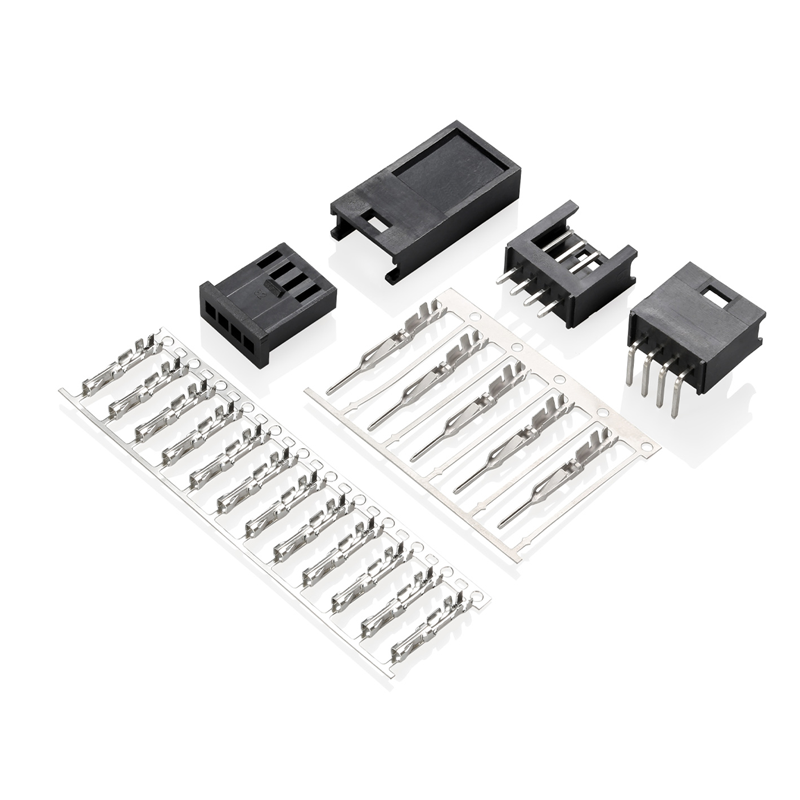

WF2505 2.54mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤2mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~26AWG
Temperature Range:-40°C~+125°C

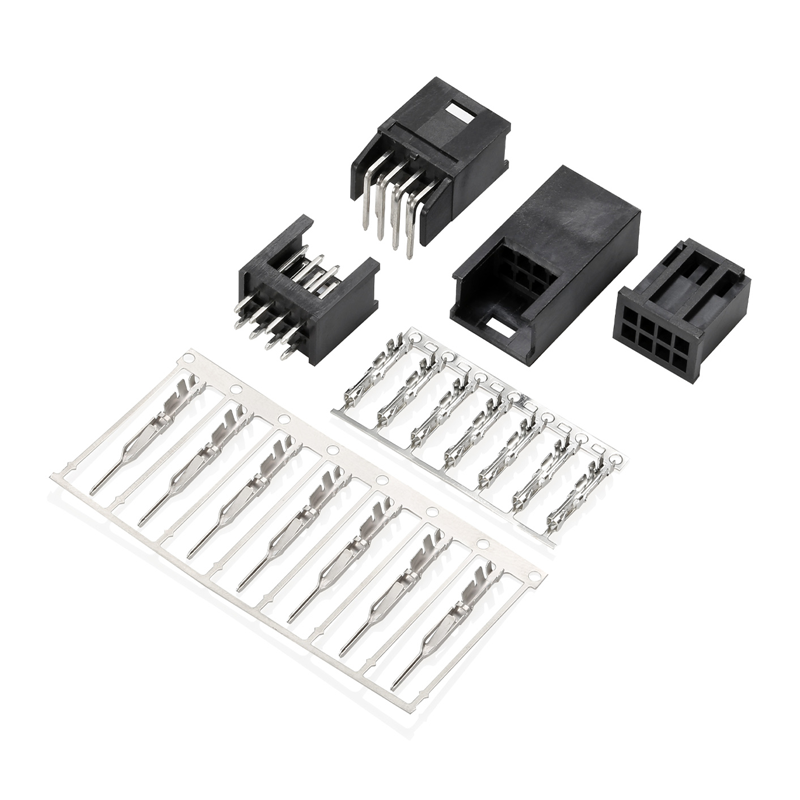

WF2506 2.54mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤2mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~26AWG
Temperature Range:-40°C~+125°C

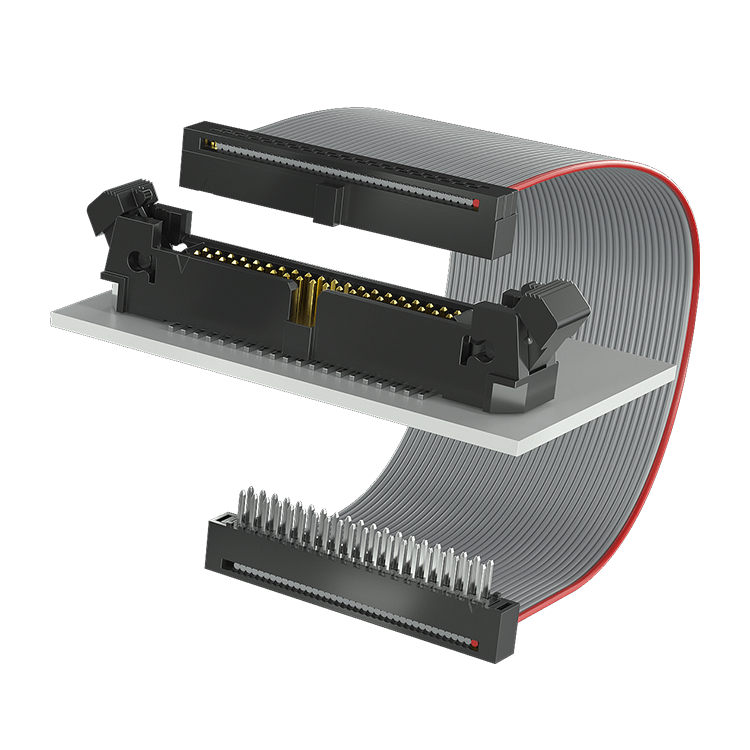

2.54mm Pitch IDC connector series, 4-80PIN arbitrary combination
Detailed specifications
1. Slender double-row IDC socket assembly with a pitch of 2.54mm
2. Double U-shaped slot ID component
3. Number of pins : 4 to 80
4. Double-ended, flat cable with socket
5. Interchangeable wires and connectors
6. Multiple wiring options, including reverse connection and daisy chain

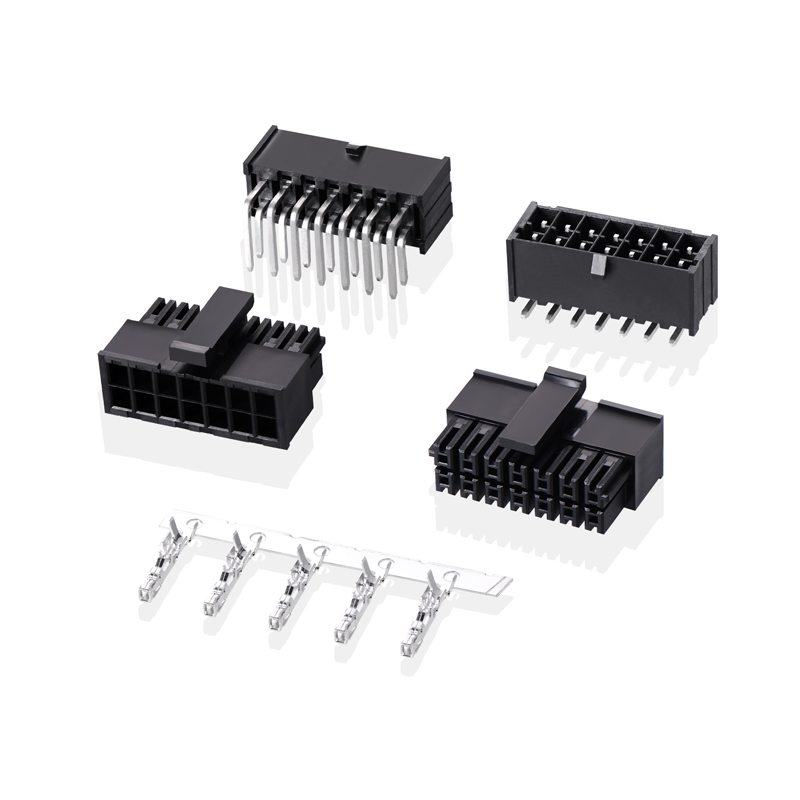

WF2507 2.54mm Pitch wire-to-board connector series
Current Rating:3A AC/DC
Voltage Rating:250V AC/DC
Contact Resistance:≤2mΩ
nsulation Resistance:≥1000mΩ
Withstanding Voltage:800V AC/Minute
Wire Range:20~26AWG
Temperature Range:-40°C~+125°C
Total 1 page 8 records
