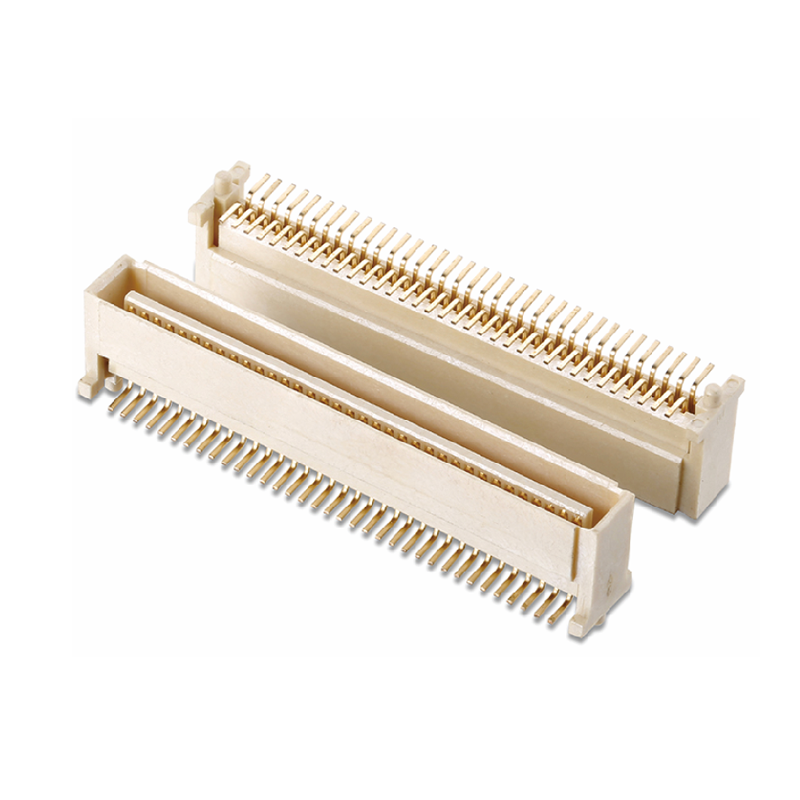

1.1.00mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 8~15mm

4. Number of cores: 10~100pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.1.00mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 15/18/20/22/25mm

4. Number of cores: 20/40/60/80/pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

7  X Y Z =0.70MM

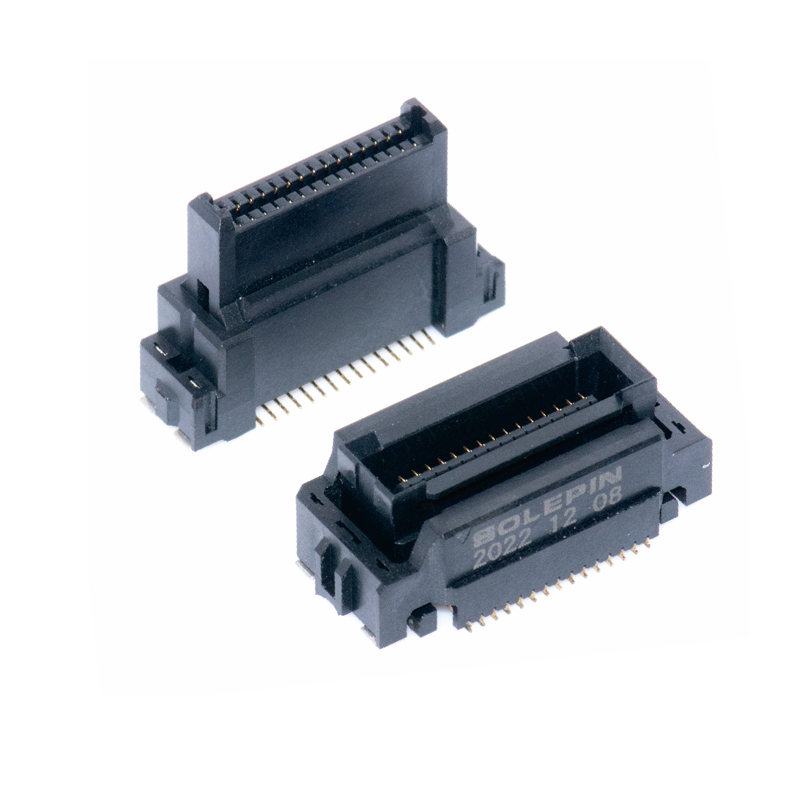

1.Floating range: ±0.7mm within the XY axis direction

2. Anti-shock frequency: 5 GHz

3. Current capacity per single terminal: 0.5A /core.

4. Combination height: 15, 18, 20, 22, 25 mm

5. The ±1.2mm integration induction design facilitates simple and rapid connection.

6. Number of cores: 20/30/40/50/60/80 positions

7. Compatible with the same type of FX26 series

8.Part number: 66D6-XXXXXXXXXXX01

9. Electroplating requirements: Gold plating

10. Plastic material: LCP

11. Production cycle: 10 - 15 days

12. Packaging method: reel and tape
