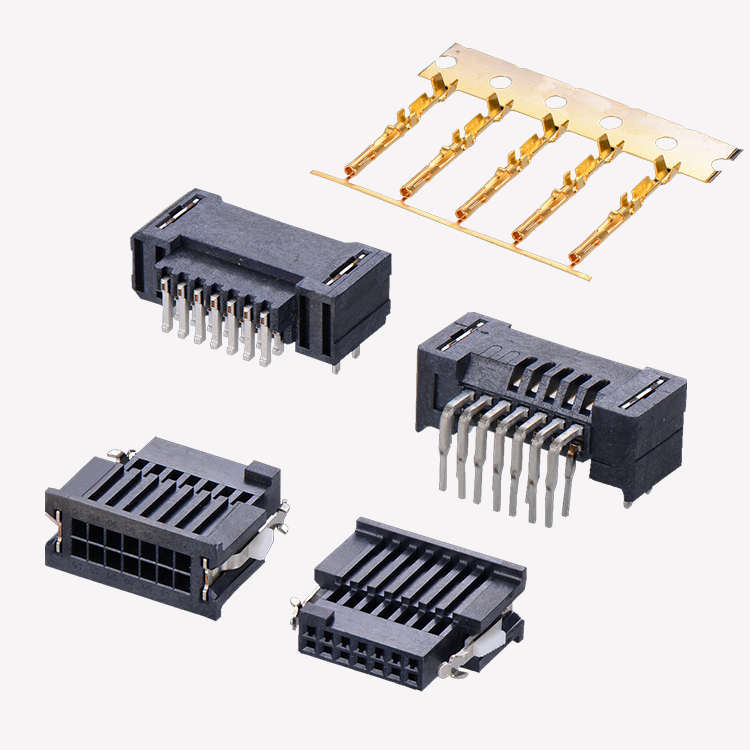

Detailed specifications

1. 1.27mm Pitch

2. Connection method: wire-to-board

3. High-performance contacts, round pin + round terminal block female combination

4. Number of cores: 4-100pos

5. The guiding design brings superior fit (guiding amount: ± 1.6mm)

6. The unique contact design enhances the mating performance

7. Supports 8 Gbps PAM4 performance

8. Equipped with shielding and top-out terminal blocks

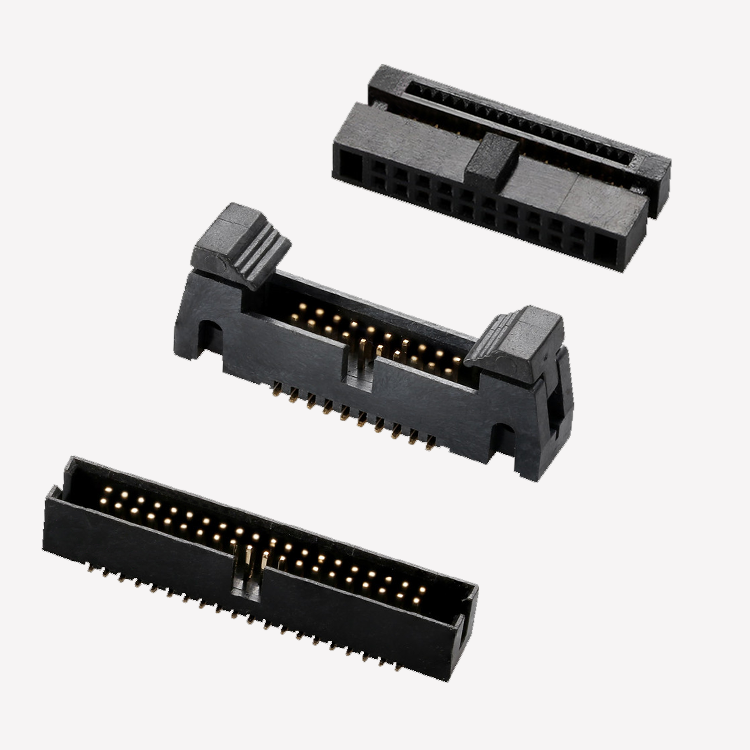

Detailed specifications

1. 1.27mm Pitch

2. Connection way: wire to board

3. High performance contact

4. Number of positons : 20 30 40 pos

5. Guiding design brings superior fit (guiding amount : ±1.6 mm)

6. Unique contact design enhance mating performance

7. Support maximum current 3A/PIN

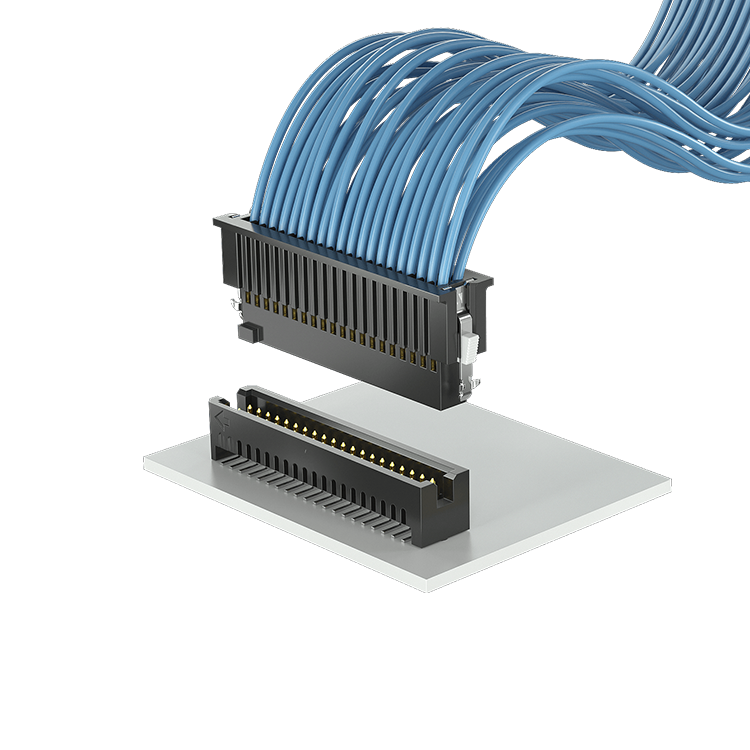

Detailed specifications

1. 1.27mm Pitch

2. Connection method: wire-to-board

3. High-performance contacts

4. Number of cores: 4-100pos

5. The guiding design brings superior fit (guiding amount: ± 1.6mm)

6. The unique contact design enhances the mating performance

7. Supports 8 Gbps PAM4 performance

8. Equipped with shielding and top-out terminal blocks

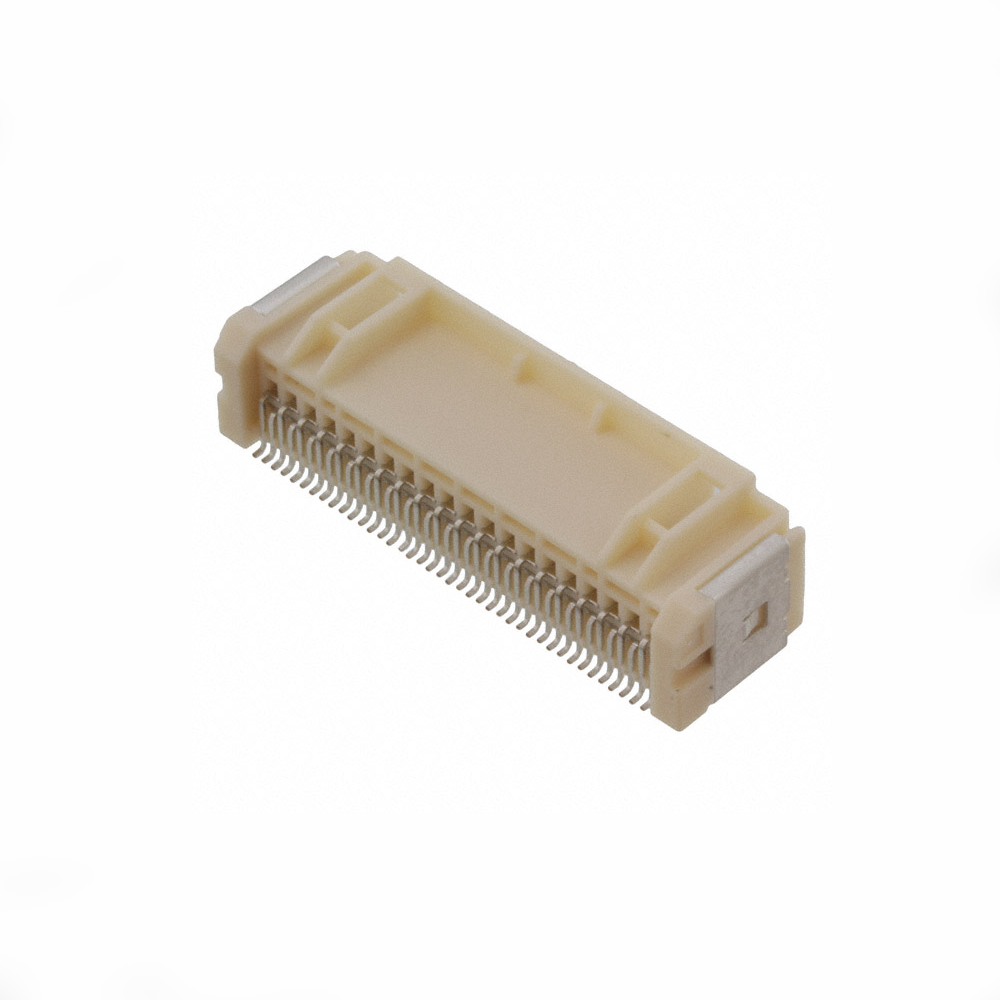

Detailed specifications

1. Connection methods: straight , bent, SMT

2. Anti-shock frequency: 2GHZ

3. Current capacity : 2A/pin

4. 1.27mm pitch

5. Wire size: 24-28AWG

6. Number of  positions : 4-80 pos
